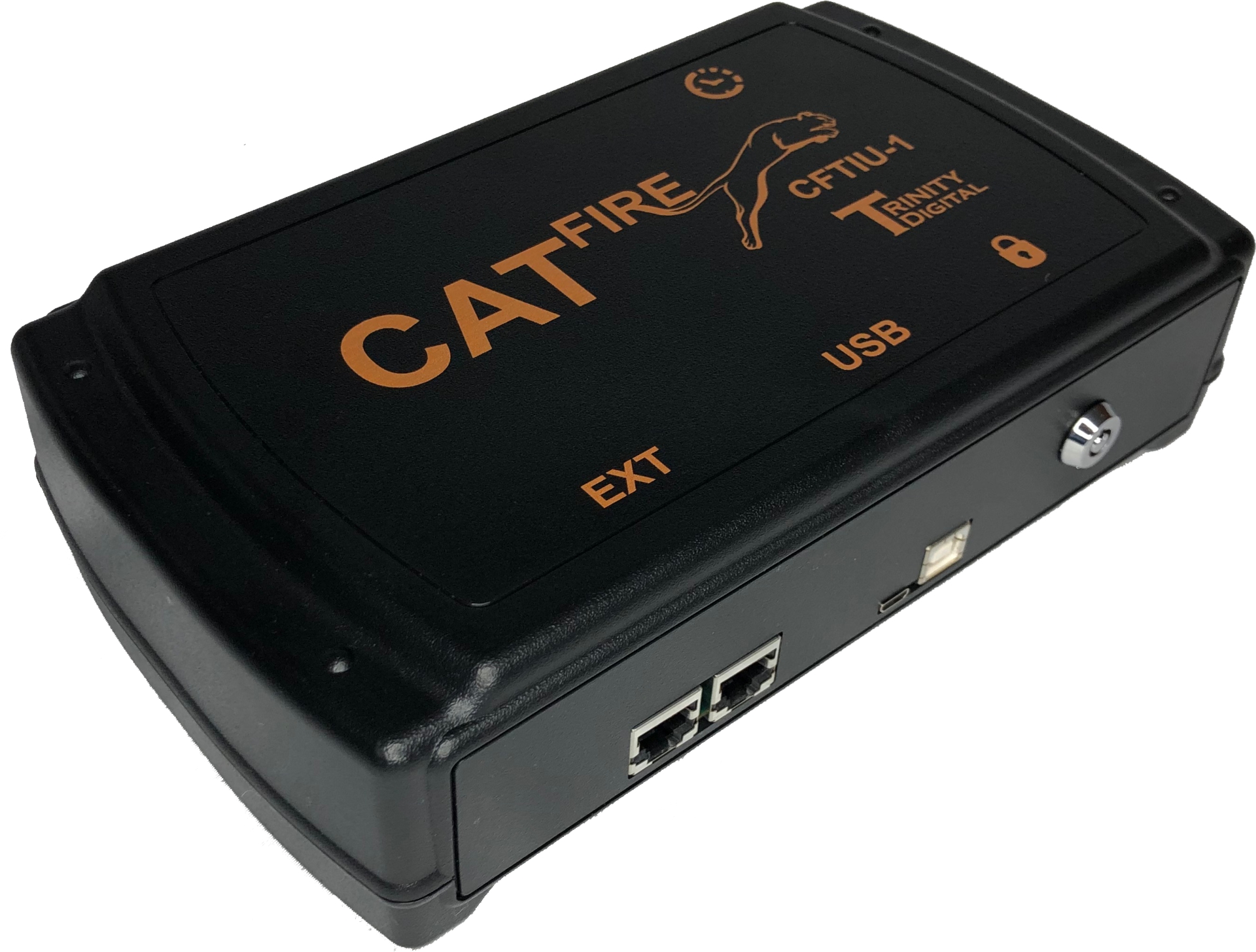

CFTIU-1 Timecode Interface Unit

Placeholder Picture

Our CATFire CFTIU-1 receives timecode to pace the firing of pyrotechnics - ensuring they are fired in sync with the music.

Powered directly from the USB socket, both USB B and Micro interfaces are supported for cable flexibility.

Supporting CATFire FSK a highly robust timecode signal generated with the CWFS-1 App, also supporting SMPTE LTC for broadcaster compatibility.

ARM lock to prevent accidental arming of the system.

Diagnostic logging.

Extension interface for future add on products and flexible connectivity.

Stackable design for convenience.

Timecode
CATFire FSK and SMPTE LTC timecode receiver.
Feeds timecode data to the CFWFS-1 App to keep display in synchronisation with the music.
Safety
ARM locking key switch prevents arming the system from the CFWFS-1 App.
Full self testing and diagnostics logging.
Expansion
Extension interface providing for future planned add-on products and flexible connectivity scenarios.
Self tests
Full self testing on power on.
All control signals are in safe conditions.
All operating state and settings are valid.
Indicators and displays
Internal bleeper keep you informed of unit state.
ARM lock key switch (removable in locked state only).
Event logging
Unit records all events and operating conditions to a permanent log, retrievable from the CFWFS-1 firing studio.
Thousands of log messages can be recorded.  Unlimited numbers when storing them with the CFWFS-1 firing studio software.
  • CATFire FSK timecode, robust, generated by the CFWFS-1 App as part of your script design.
  • SMPTE LTC (Linear TimeCode) for broadcast industry compatibility.  24, 25, 30 drop and non-drop supported.
  • Line level signal support: from consumer through to +4dB professional level.
  • Balanced XLR also supports unbalanced input.
  • Lightweight impact resistant ABS enclosure.
  • -20 to +60 degrees celcius, 90% relative humidity non-condensing.
  • Stackable design for convenience.
  • Mount unit in any orientation.
  • Future proofing: Feature enhancements via firmware updates from CFWFS-1 App, available from the support section.
  • Better for environment: Maintain your investment for the long term.
  • Better for environment: Easy to recycle when necessary.

Click on an image to view in more detail.

CFTIU-1
CFTIU-1
CFTIU-1
CFTIU-1
