CFCR-50 Cable Reel

Placeholder Picture

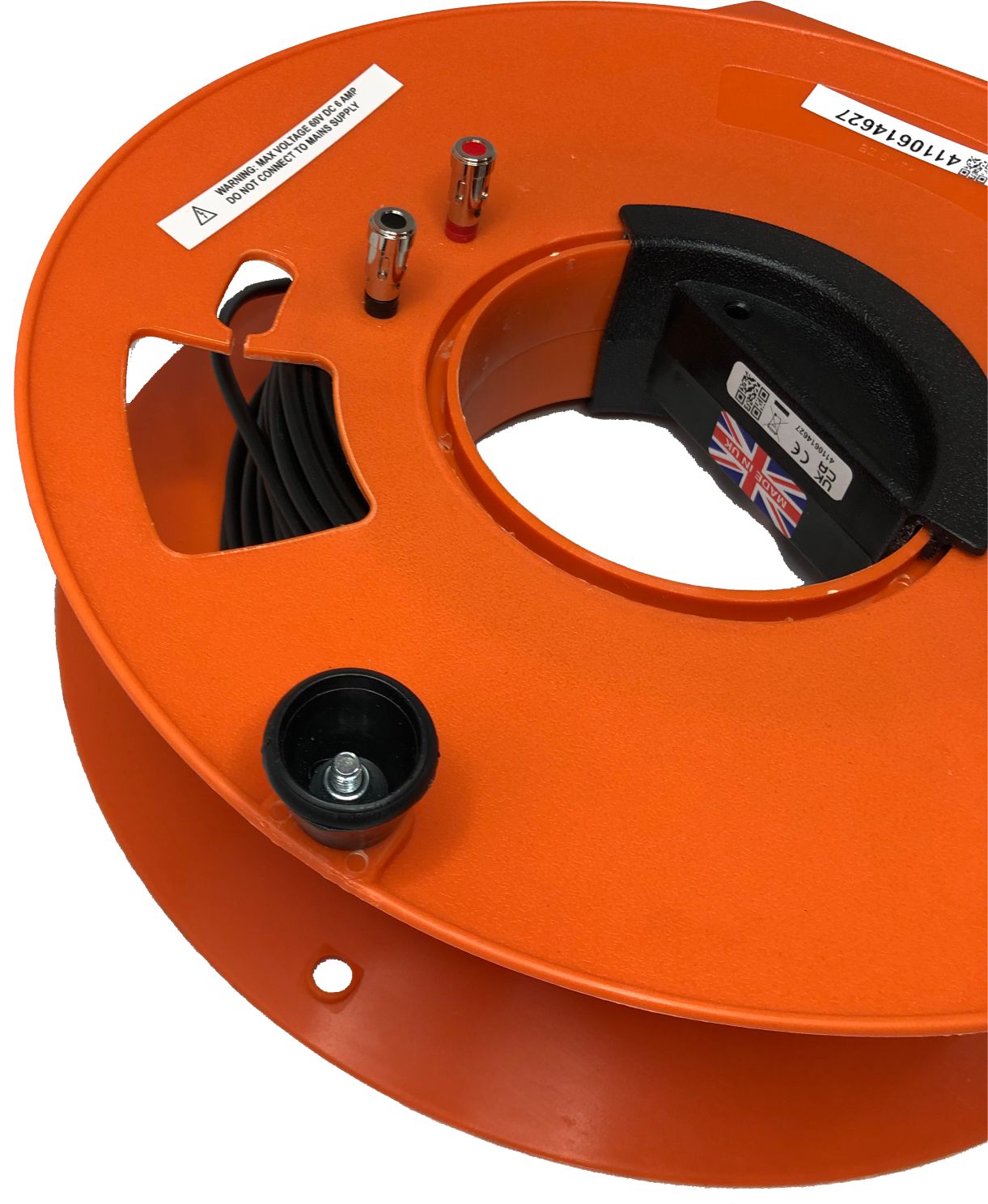

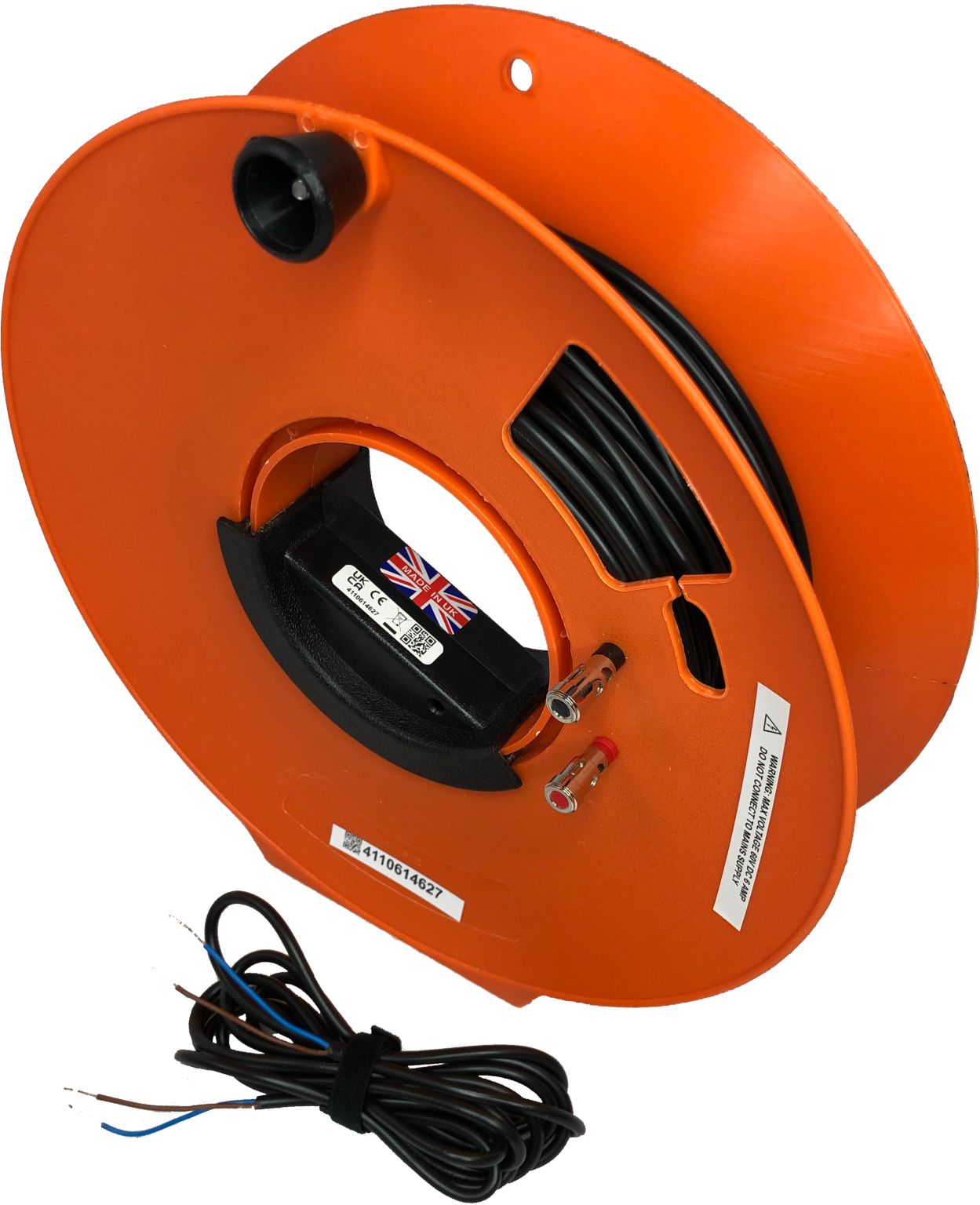

CFCR-50 cable reel - large and easy to handle reel.

50 metres overall length, 47 metres on reel, 3 metre fly lead for interconnect.

Rugged spring binding posts.

Lightweight yet rugged, this reel has a large central hand grip, the reel rotating around this permitting rapid winding and rewinding.

Details
  • 47 metres on reel.  Rugged spring binding posts on reel with a pre-tinned end wire.
  • Supplied with 3 metre fly lead with pre-tinned ends for robustness - conveinent interconnection from the reel binding posts to another device e.g. CFTFU-0124.
  • Black PVC, 0.5mm2 two-core cable.
  • 6 Amps continuous max.
  • WARNING: 60 volts D.C. MAX.  DO NOT USE MAINS VOLTAGES THIS IS NOT A MAINS EXTENSION CABLE.
  • Trigger input with local (on-unit) arming.
  • Fire, control switches, timed patterns on each trigger input received.
  • User programmable sequence on each trigger (mix and match self timed steps too).
  • Current triggered: 1 Amp to trigger.  Up to 60V DC supported, trigger with a simple 9v battery or use our CFTU-0124 trigger unit for maximum convenience.
  • Trigger input is testable up to 50mA even when unit is off.
  • Customisable debounce to remove possibility of noisy signals / or increase sensitivity as needed.
  • Trigger input becomes a wired disarm input when the unit is controlled via radio.
  • Connect to other firing system cues to fire sequences too.
  • UV stable, impact resistant polycarbonate enclosure.
  • IP66 rated, pressure vented to guard against moisture ingress under atmospheric changes.
  • Circuits tropicalised for further moisture protection.
  • -20 to +60 degrees celcius, 90% relative humidity non-condensing.
  • Set up in the most attrocious weather with no concerns: All season tested.
  • Heavy duty spring binding post connection terminals.
  • Stainless steel on/off key switch mechanism - suitable for marine environments Severity 1 (EN60068-2-52).
  • Integrated mounting feet.
  • Internal battery clamping: securely held in place.
  • Mount unit in any orientation.

Click on an image to view in more detail.
